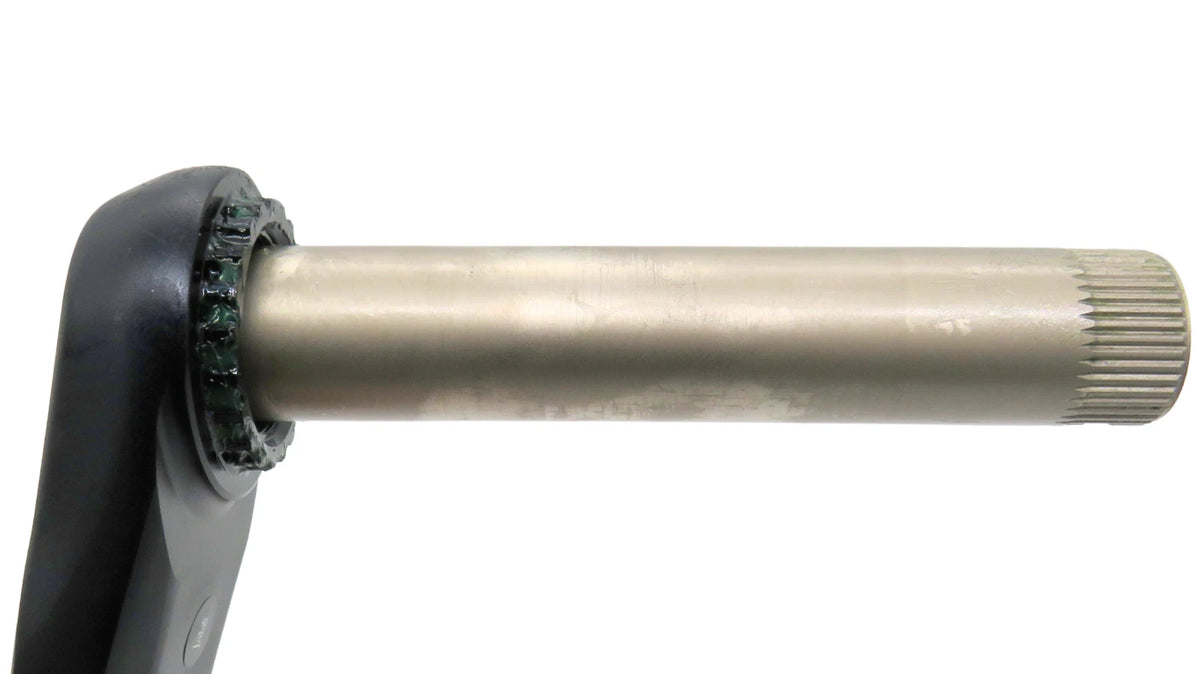

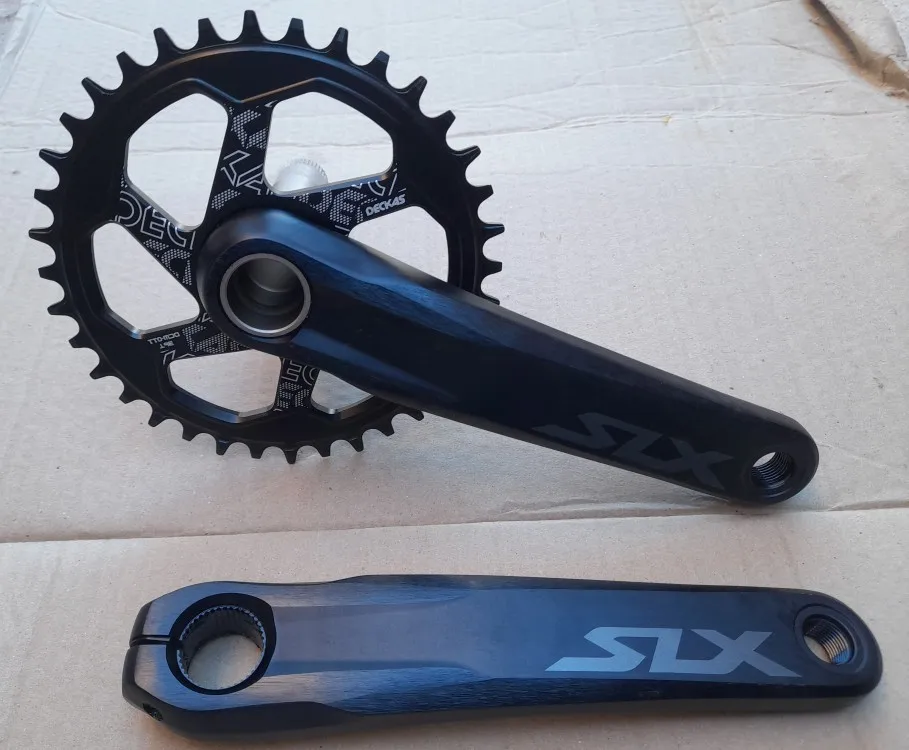

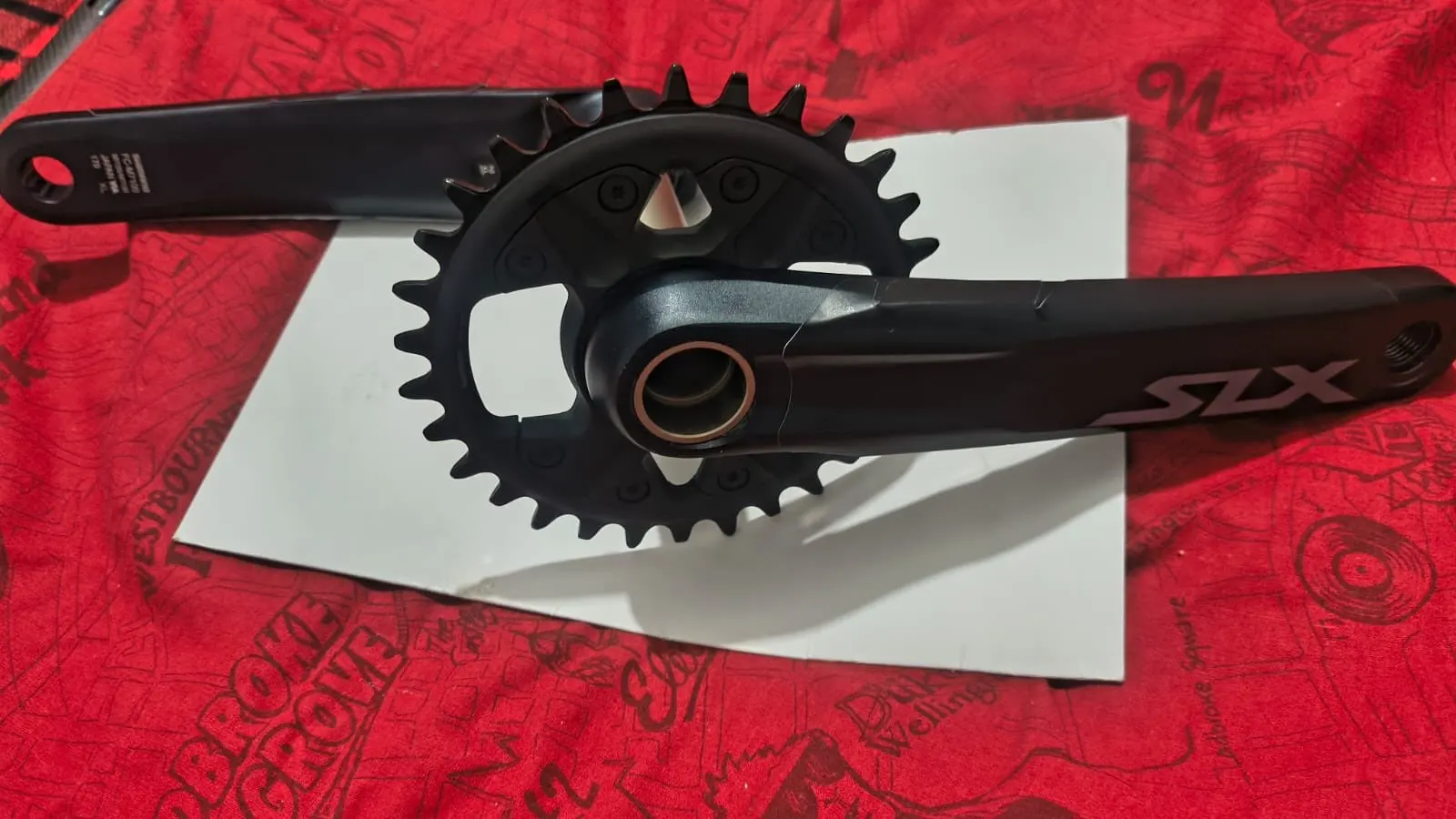

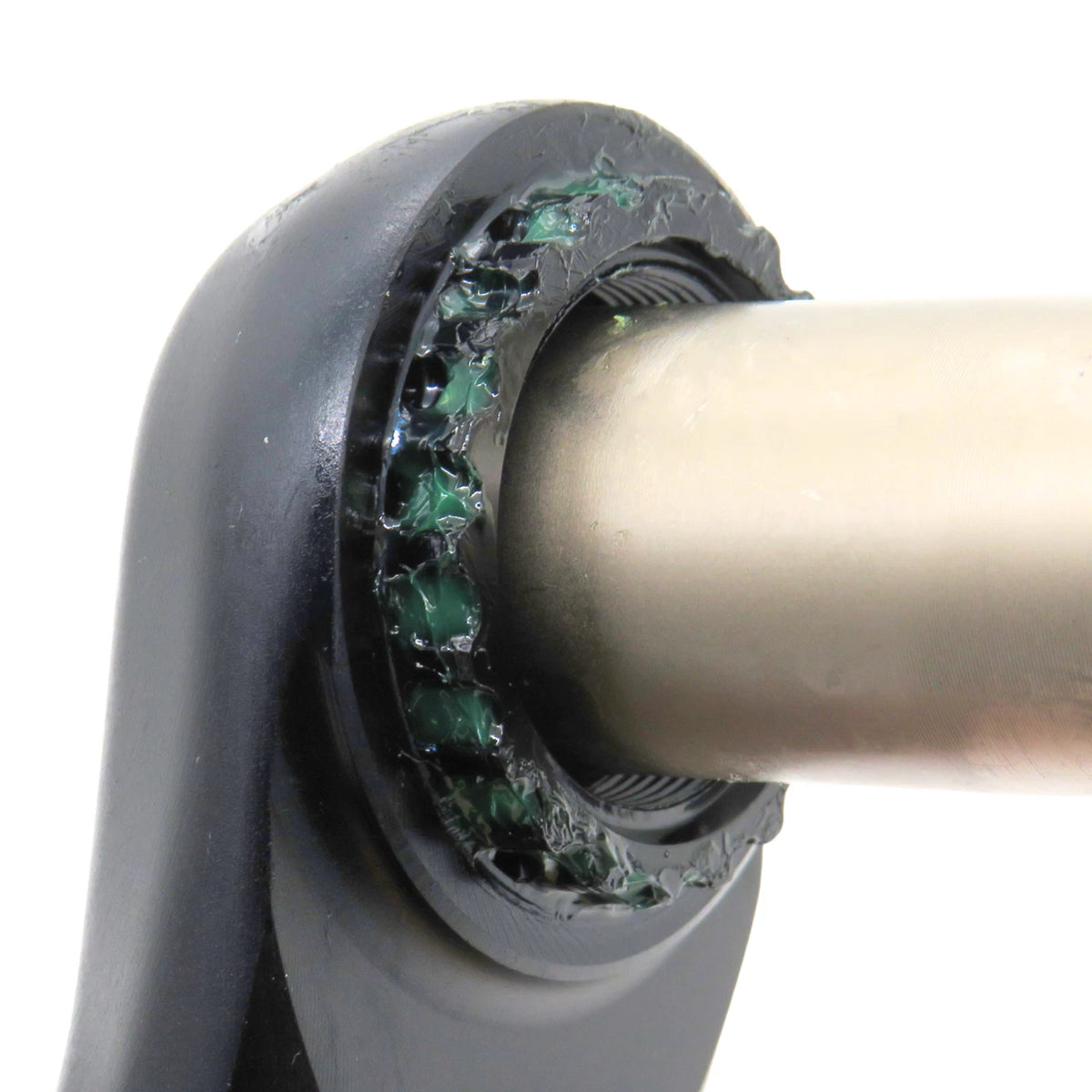

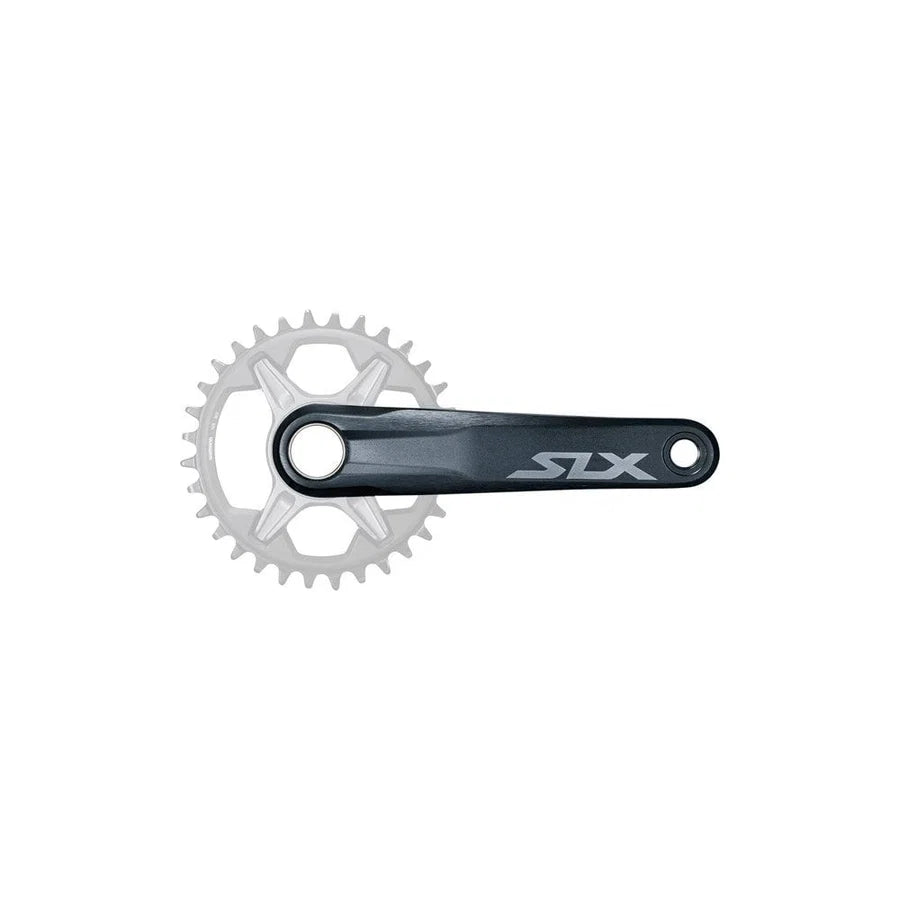

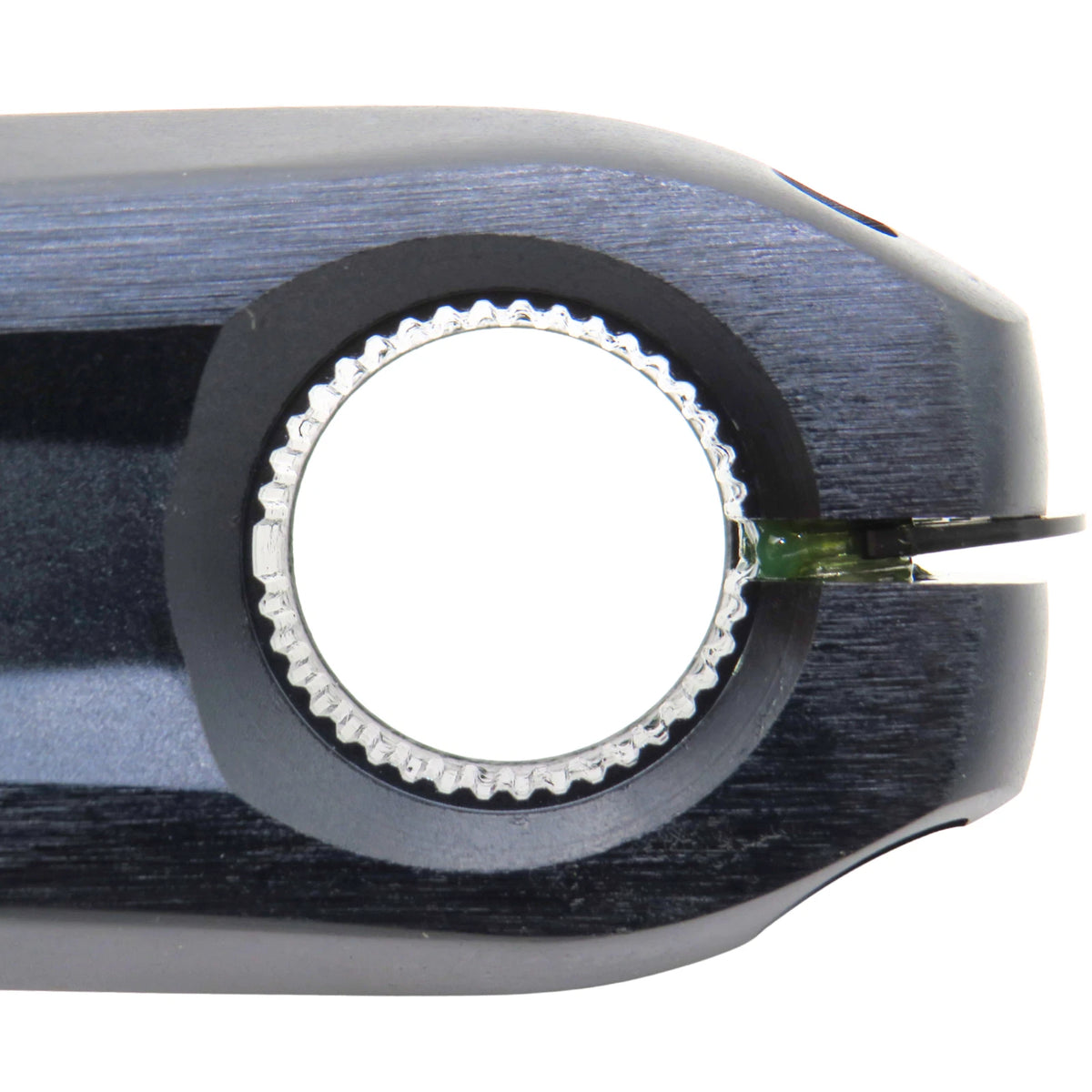

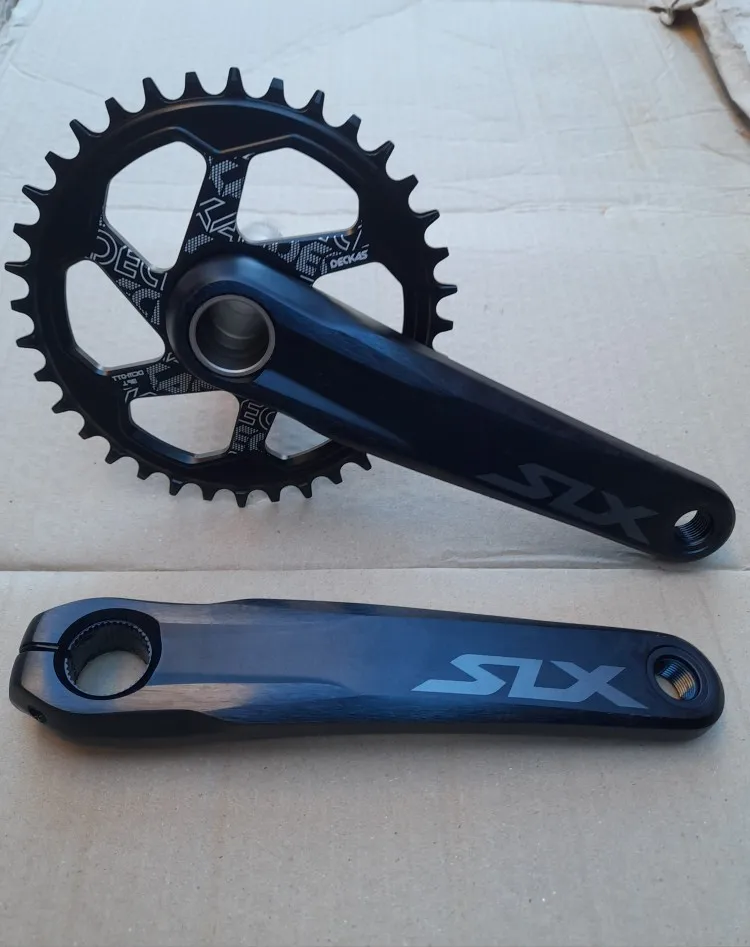

Shimano SLX FC-M7100 12 Speed Crankset

The SLX FC-M7100-1 crank features an entirely new construction, using direct mount chainrings, special gear tooth profile for improved chain retention, and a 172mm Q-factor.

• All-mountain SLX HollowTech II crank set is tough and aggressive yet also lightweight and excellent value
• The HollowTech II Chainset features hollow forged crank arms which are both lightweight and rigid whilst being incredibly strong and durable
• HollowTech II integrated bottom bracket design uses a wide bearing placement with a large axle diameter for increased stiffness, efficiency and added durability
• 70 degree spider arm for optimal rigidity
• For 12-speed SM-CRM75 chainring (sold separately)
• SM-CRM75 chainring teeth feature Shimano's new Dynamic Chain Engagement technology offering enhanced chain retention, driving rigidity and highly efficient
• We recommend that the bottom bracket is initially installed by a bike shop to ensure perfect facing and fit
• For use with 12-speed HG+ MTB chains only
• With a 52 mm single ring chain line for use in conjunction with 142 / 148 mm O.L.D.

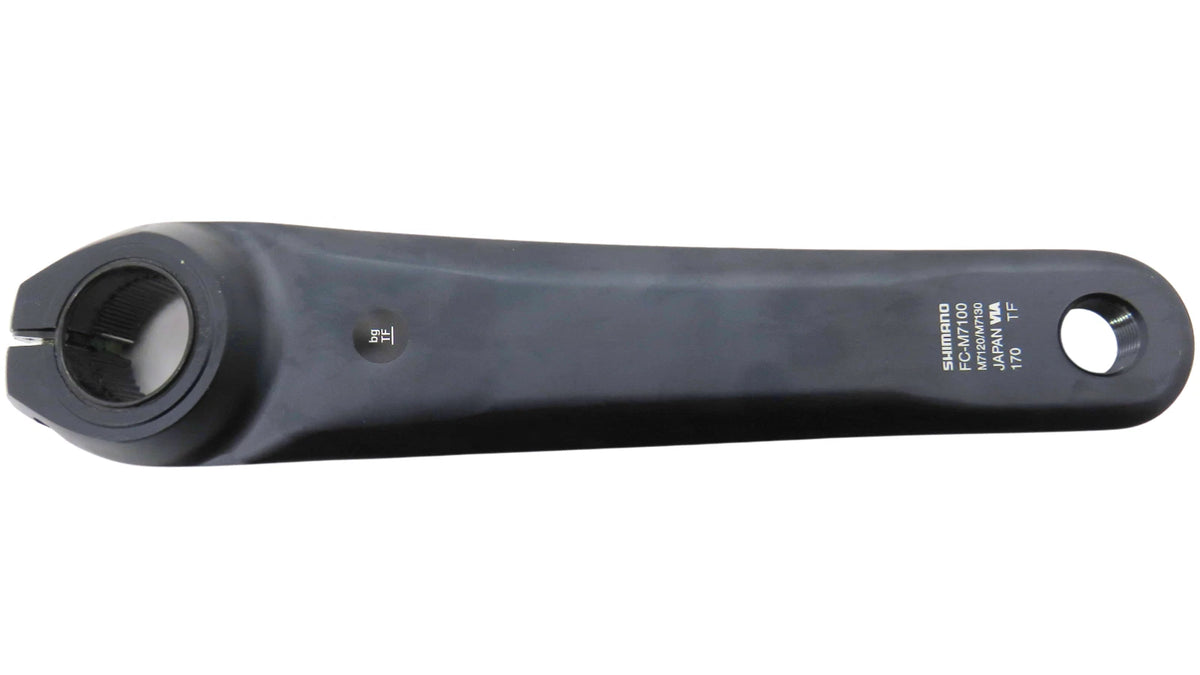

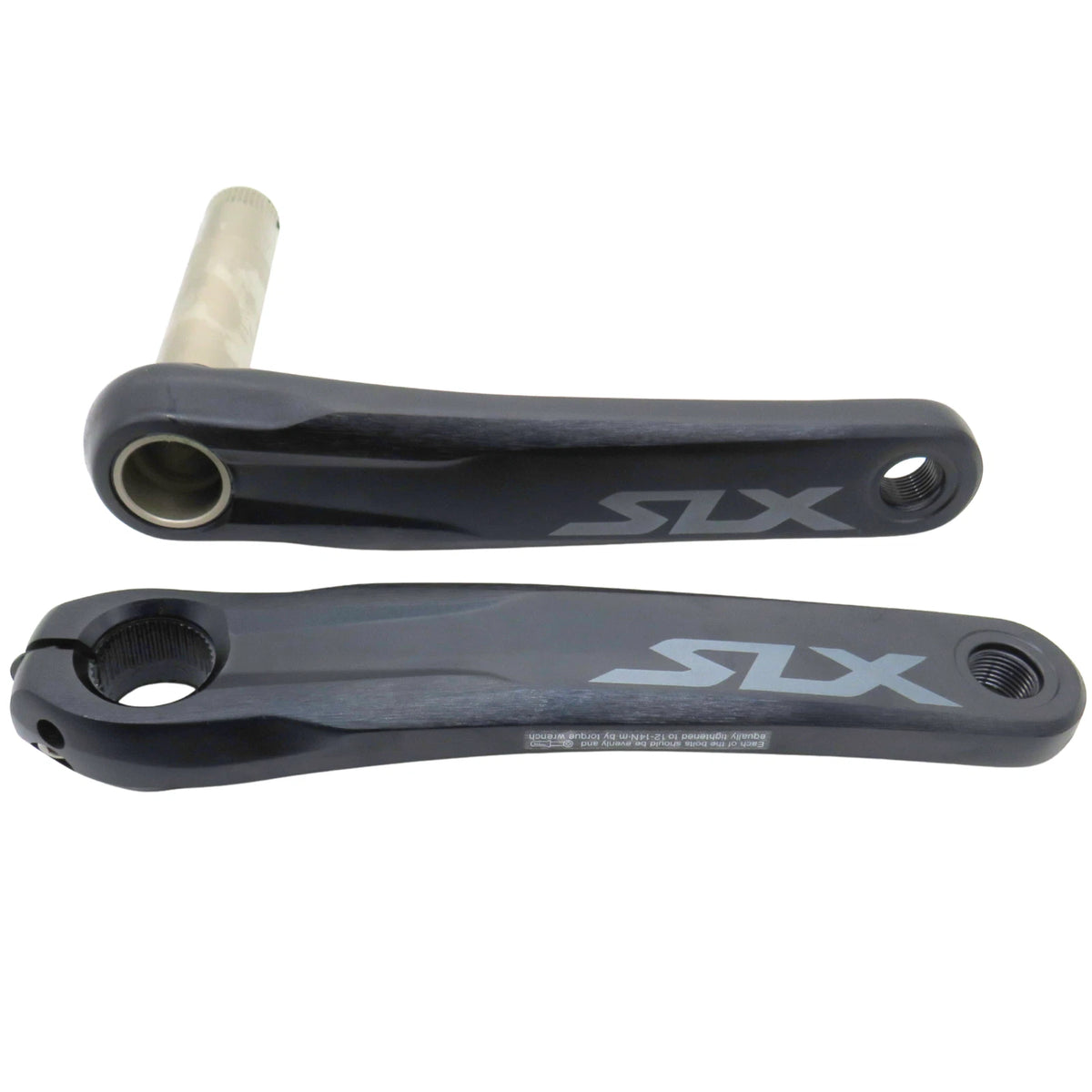

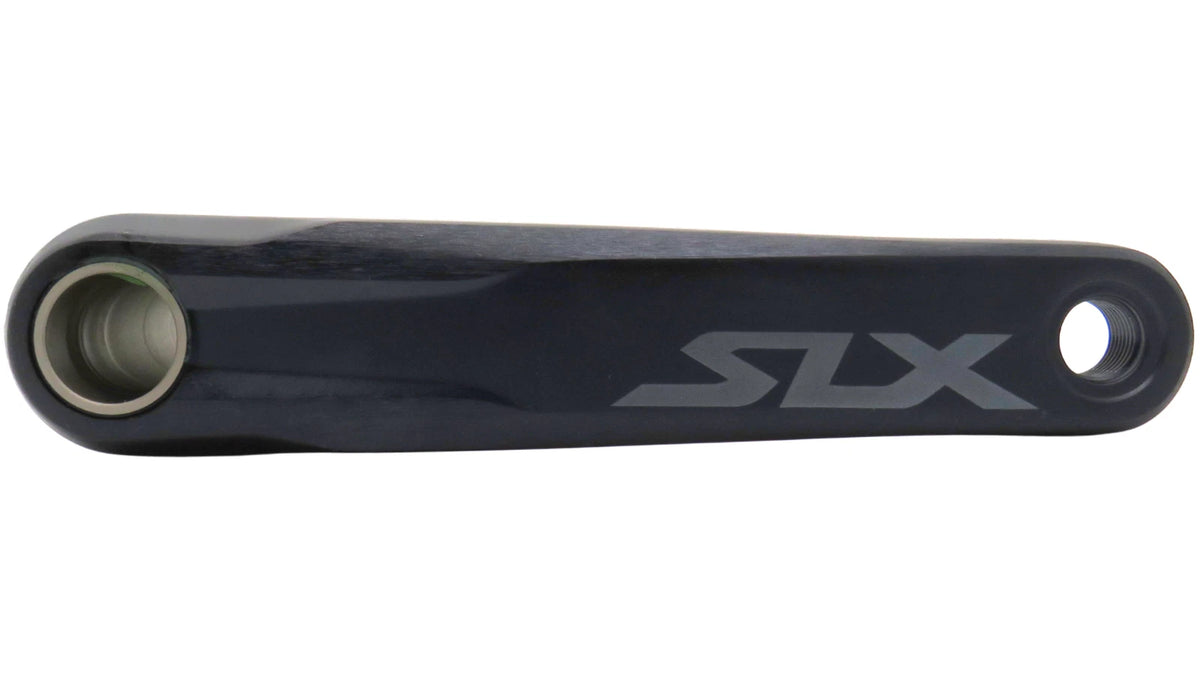

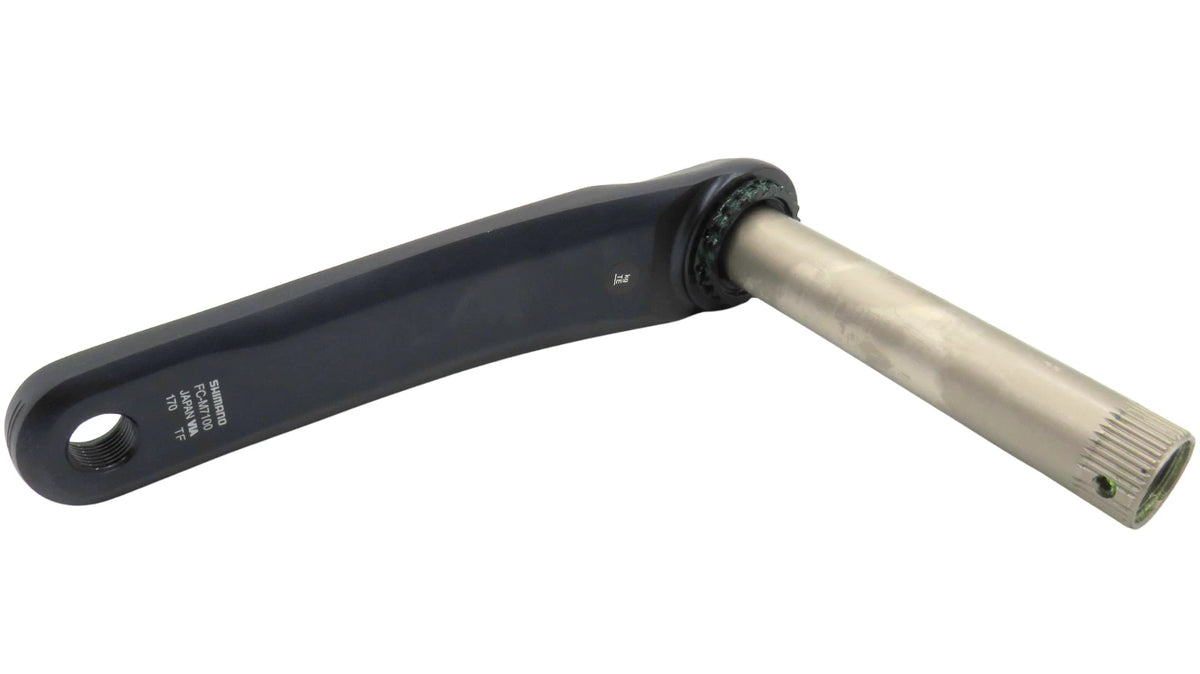

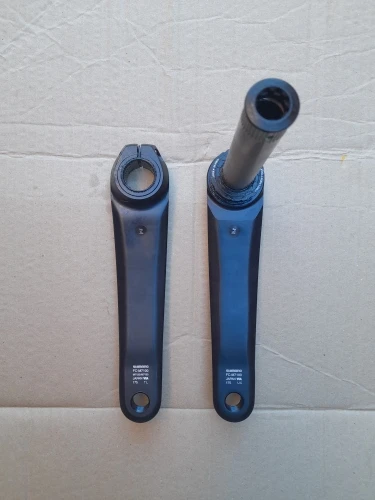

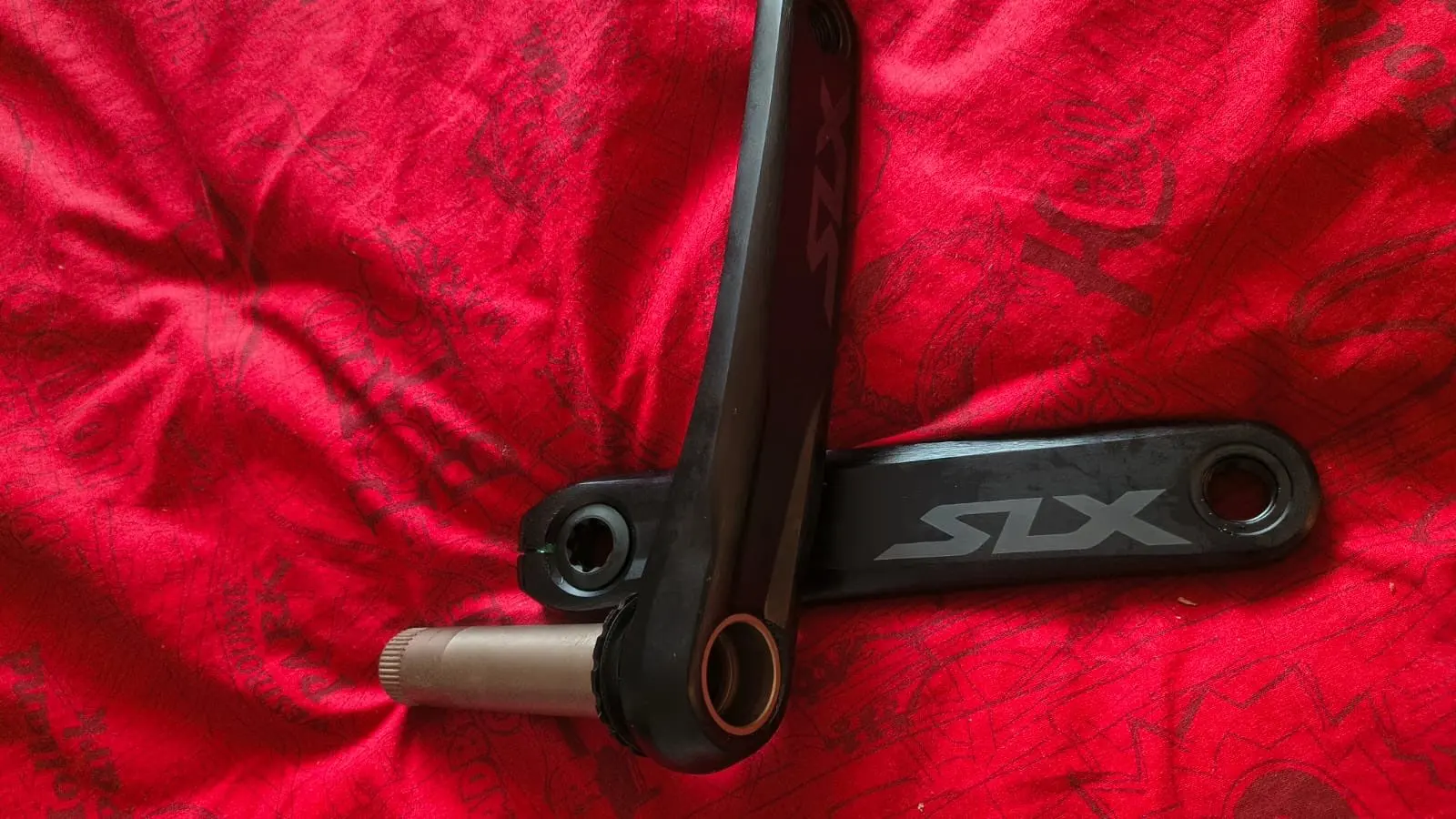

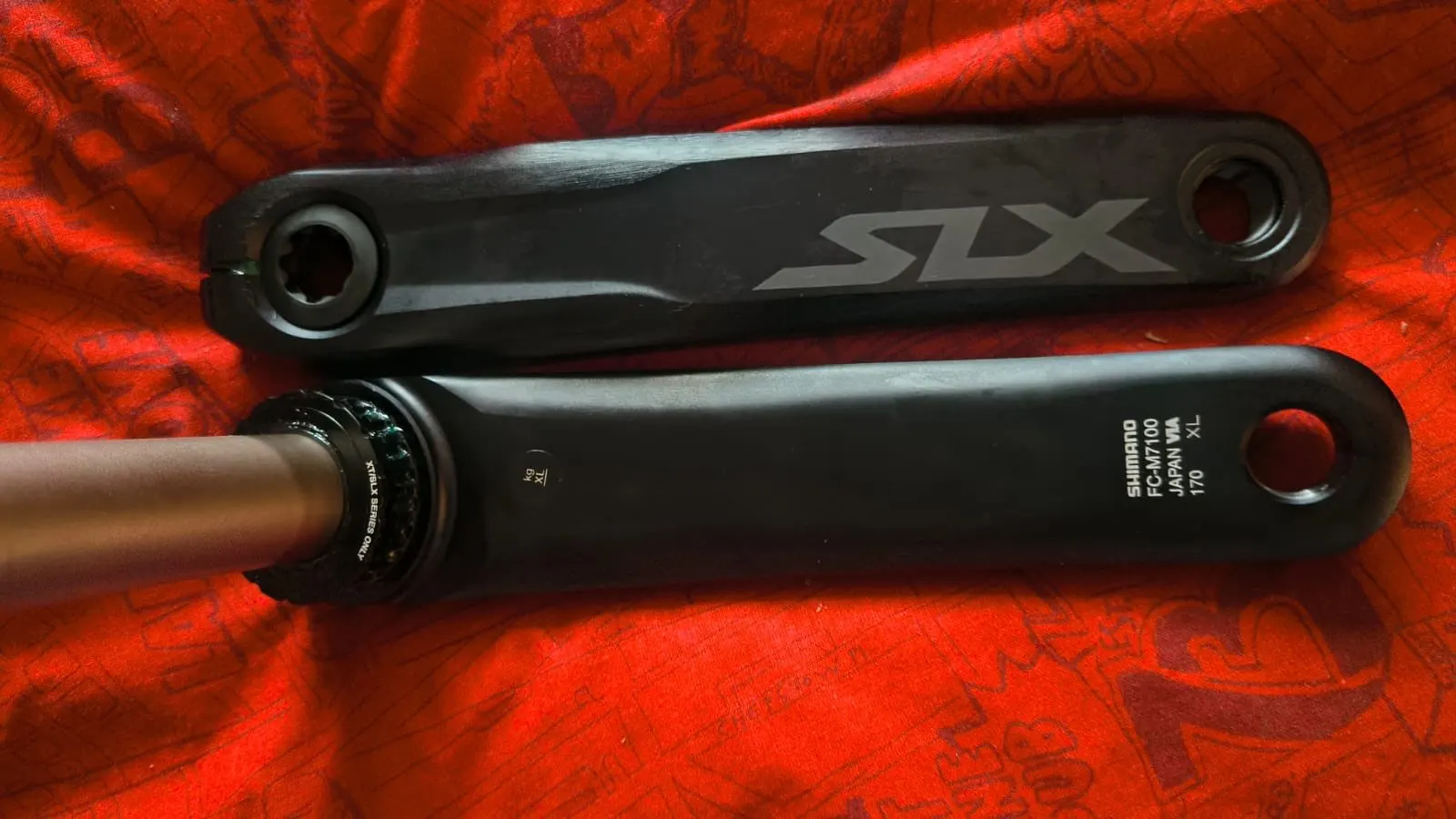

Shimano SLX M7100 Crankarms

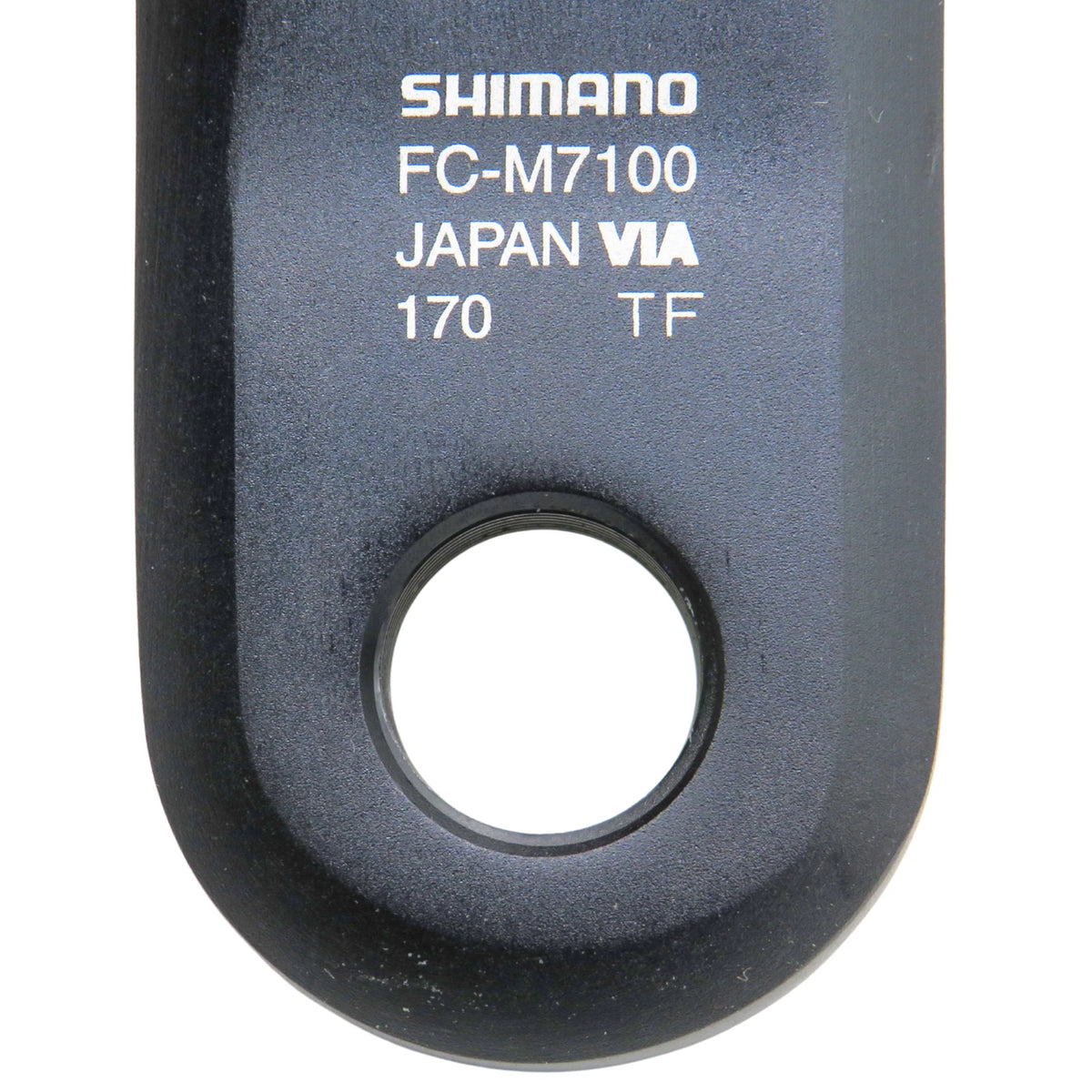

Model: FC-M7100-1
Series: DEORE XT M7100 Series
Rear transmission: 12
Compatible chain: HG 12 speed
Chain centerline (mm): 52
O. L.D. | Barrel shaft (mm): 142, 148
Lock Nut Spacing | Internal/External Types: 135, 141
P. C.D. (mm): Direct installation
Tooth fixed arm/crank claw: 4
Q factor (mm): 172
Crank arm length (mm) | 170
Crank arm length (mm) | 175
Compatible center axis types | On the outer side:
Recommended center shaft | thread (normal): BB-MT801
Recommended center shaft | press in type: BB-MT800-PA
Thread five way width (mm) | 68
Thread five way width (mm) | 73
